GS Series

Rugged and Easy to Use

Easy for You

  • Less wood cutting – These high efficiency furnaces use up to 50% less wood than conventional furnaces, saving you time cutting and loading wood and cleaning ash.
  • EZ Clean Handle – Clean the heat exchange tubes quickly and easily and reduce maintenance time. No brushing tubes or scraping creosote!
  • Loading Switch – Reduces smoke when loading.
  • Easy access hinged rear door – The insulated rear door is built with a unique hinge design which allows for easy access to the rear of the furnace and quick and easy removal of the door if required without the use of tools or hardware.
  • Safe easy-to-use dual firebox door latch – Our carefully designed latch catches the door so it doesn’t swing completely open and expose you to excessive heat.
  • Water Level Gauge –  That’s easy to read so you never have to worry about the status of the water

An Outdoor Wood Furnace that’s Built to Last

  • Titanium Stainless Steel – Titanium enhanced and corrosion resistant, it is the only product that can provide the right blend of longevity, heat transfer and other critical traits that meet the HeatMasterSS standard of excellence.
  • HeatMasterss warranty – We back each furnace with our best-in-industry Lifetime Limited Warranty which is twice as long as the leading mild steel competitor. It confirms our confidence in our products.
  • Rounded firebox – The rounded design gives the firebox more strength with fewer welds.
  • Draft Induction Fan – Draws air through the furnace to keep the airways clean.
  • ISO 9001 Certified – HeatMasterSS furnaces are built to the very highest manufacturing standards, employing top notch design and engineering.
  • Heavy duty multi-layer insulation – We feature a foil-backed insulation that won’t trap moisture, gives you high R values and has no seams for heat to escape.
  • Combustion Chamber – Our high efficiency chamber has a horseshoe refractory design to help create the cleanest, hottest burn.

Want to learn more about gasification? Learn More

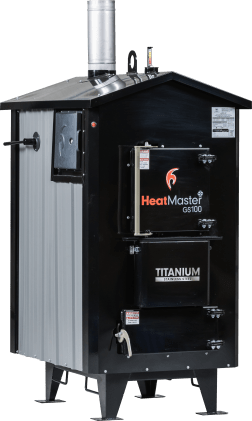

GS100



2018-GS100

  • Fire Box (W x L x H) – 19″ x 20″ x 30″
  • Fire Box Door (W x H) – 16″ x 16″
  • Water Capacity – 90 gal
  • Approx. Heating Space – 3,000 sq ft
  • Approx. BTU’s – 120,000
  • Dimensions (W x L x H) – 37.5″ x 57″ x 77″
  • 8 hour burn rate – 47,772 BTU/hr
  • Emissions – .07lb/mmBTU
  • 8 hour efficiency – 81.50% (Lower heating value)
  • 8 hour efficency – 75.80% (Higher heating value)
  • Annual efficency – 68% (Higher heating value)

View Pricing


GS200

2018-GS200

  • Fire Box (W x L x H) – 28″ x 30″ x 36″
  • Fire Box Door (W x H) – 20″ x 20″
  • Water Capacity – 195 gal
  • Approx. Heating Space – 5,000 sq ft
  • Approx. BTU’s – 232,000
  • Dimensions (W x L x H) – 51.5″ x 70″ x 87.5″
  • 8 hour burn rate – 111,315 BTU/hr
  • Emissions – .07lb/mmBTU
  • 8 hour efficiency – 85% (Lower heating value)
  • 8 hour efficency – 79% (Higher heating value)
  • Annual efficency – 75% (Higher heating value)

View Pricing

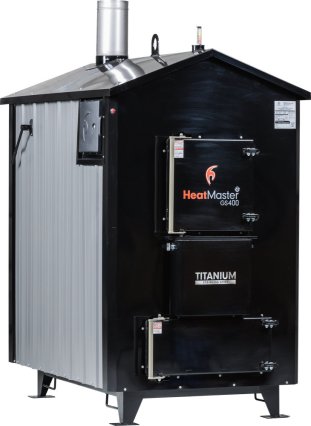

GS400

2018-GS400

  • Fire Box (W x L x H) – 32″ x 42″ x 40″
  • Fire Box Door (W x H) – 20″ x 20″
  • Water Capacity – 260 gal
  • Approx. Heating Space – 5,000 sq ft
  • Approx. BTU’s – 340,000
  • Dimensions (W x L x H) – 51″ x 82″ x 90″
  • 8 hour burn rate – 180,409 BTU/hr
  • Emissions – .23lb/mmBTU
  • 8 hour efficiency – 80.5% (Lower heating value)
  • 8 hour efficency – 74.8% (Higher heating value)
  • Annual efficency – 74.4% (Higher heating value)

View Pricing



* The above is from heatmasterss.com for more info please visit their website.
