Rugged and Easy to Use

Easy for You

• Less cleaning and maintenance: The EZ Clean handle makes cleaning the heat exchange tubes a breeze. No need to brush tubes or scrape creosote, you can load and clean your furnace in 5 minutes!
• Stay clean while loading: The Smokeless Loading handle lets you enjoy clean, easy loading. Just pull the handle before opening the door to eliminate smoke coming out at you while loading.
• Less wood cutting: These high efficiency furnaces use up to 50% less wood than conventional furnaces, saving you time cutting and loading wood and cleaning ash.
• Indoors and outdoors: G Series furnaces are safe and clean enough to be installed in a garage, shop or outbuilding as well.
• Easy access hinged rear door – The insulated rear door is built with a unique hinge design which allows for easy access to the rear of the furnace and quick and easy removal of the door if required without the use of tools or hardware.
• Safe easy-to-use dual firebox door latch – Our carefully designed latch catches the door so it doesn’t swing completely open and expose you to excessive heat.
• Sight Glass – Located in the bottom front door, this let’s you see the fire in the lower combustion chamber without opening the door.

An Outdoor Wood Furnace that’s Built to Last

• Titanium Stainless Steel – Titanium enhanced and corrosion resistant, it is the only product that can provide the right blend of longevity, heat transfer and other critical traits that meet the HeatMaster^SS standard of excellence.
• HeatMaster^ss warranty – We back each furnace with our best-in-industry Lifetime Limited Warranty which is twice as long as the leading mild steel competitor. It confirms our confidence in our products.
• Rounded firebox – The rounded design gives the firebox more strength with fewer welds.
• Draft Induction Fan – Draws air through the furnace to keep the airways clean.
• ISO 9001 Certified – HeatMaster^SS furnaces are built to the very highest manufacturing standards, employing top notch design and engineering.
• Heavy duty multi-layer insulation – We feature a foil-backed insulation that won’t trap moisture, gives you high R values and has no seams for heat to escape.
• Combustion Chamber – Our high efficiency chamber has a horseshoe refractory design to help create the cleanest, hottest burn.

Want to learn more about gasification? Learn More

---

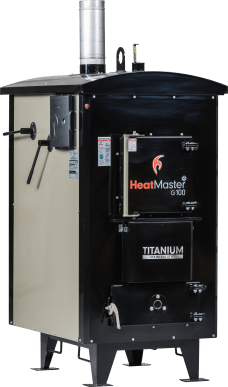

G100

The G100 is our smallest wood furnace and is perfect for a home or small outbuilding and compact enough to be easily installed indoors.



• Fire Box (W x L x H) – 19″ x 20″ x 30″
• Fire Box Door (W x H) – 16″ x 16″
• Water Capacity – 90 gal
• Approx. Heating Space – 3,000 sq ft
• Approx. BTU’s – 120,000
• Dimensions (W x L x H) – 37.5″ x 57″ x 77″
• 8 hour burn rate – 47,772 BTU/hr
• Emissions – .07lb/mmBTU
• 8 hour efficiency – 81.50% (Lower heating value)
• 8 hour efficency – 75.80% (Higher heating value)
• Annual efficency – 68% (Higher heating value)

View Pricing

---

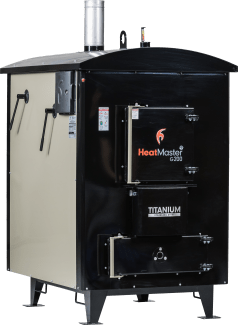

G200

Our top selling outdoor wood furnace using gasification technology, the G200 is a workhorse! Capable of supplying heat to a home and small shop or one large building. Ask us how the G200 can be put to work for you.



• Fire Box (W x L x H) – 28″ x 30″ x 36″
• Fire Box Door (W x H) – 20″ x 20″
• Water Capacity – 195 gal
• Approx. Heating Space – 5,000 sq ft
• Approx. BTU’s – 232,000
• Dimensions (W x L x H) – 53″ x 70″ x 84″
• 8 hour burn rate – 111,315 BTU/hr
• Emissions – .07lb/mmBTU
• 8 hour efficiency – 85% (Lower heating value)
• 8 hour efficency – 79% (Higher heating value)
• Annual efficency – 75% (Higher heating value)

View Pricing

---

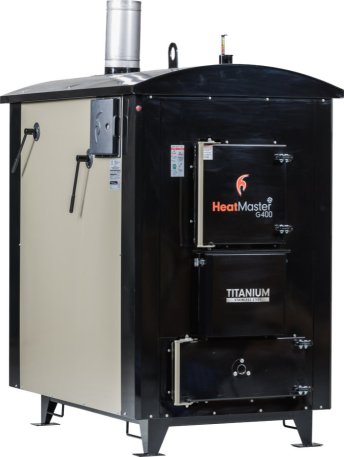

G400

One of the largest gasification furnaces available, the capacity of this unit makes it suitable for many large load applications. It’s capable of heating up to 4 applications at the same time, a home and large shop or a commercial sized shop. It may be all you need for multi-building, high demand applications.



• Fire Box (W x L x H) – 30″ x 42″ x 40″
• Fire Box Door (W x H) – 20″ x 20″
• Water Capacity – 260 gal
• Approx. Heating Space – 8,000 sq ft
• Approx. BTU’s – 340,000
• Dimensions (W x L x H) – 53.5″ x 82″ x 90″
• 8 hour burn rate – 180,409 BTU/hr
• Emissions – .23lb/mmBTU
• 8 hour efficiency – 80.5% (Lower heating value)
• 8 hour efficency – 74.8% (Higher heating value)
• Annual efficency – 74.4% (Higher heating value)

View Pricing

* The above is from heatmasterss.com for more info please visit their website.
